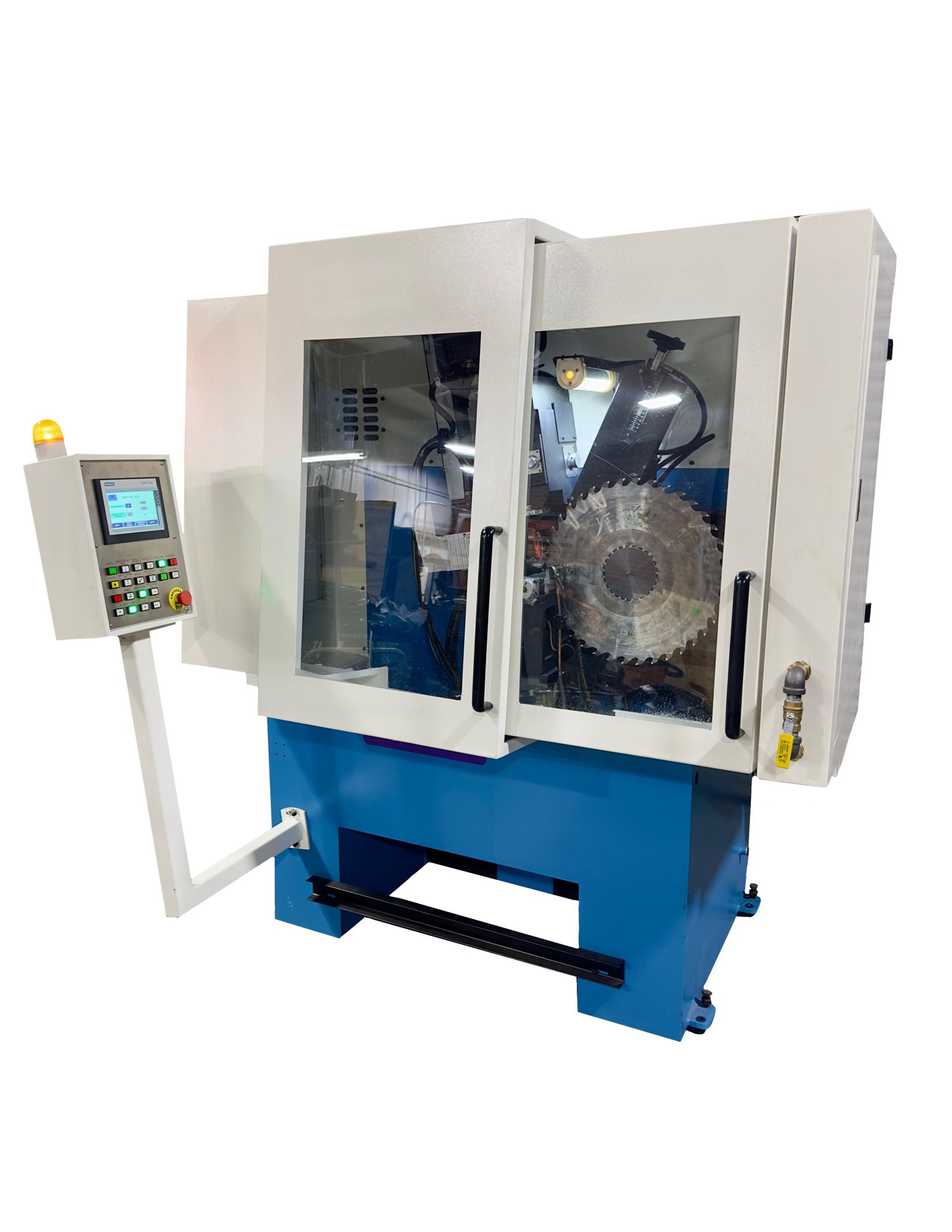

EQ 600TF

Automatic Top & Face Grinder

The EQ 600TF offers a cost-effective solution for grinding carbide and stellite-tipped saw blades. Featuring a streamlined design, it utilizes a Siemens HMI touchscreen for easy input of blade data, while the Siemens PLC ensures precise control of all movements. Fully enclosed, the machine is compatible with both water-soluble coolants and grinding oils, providing versatile operation and enhanced performance.

Technical Specifications:

Saw Diameter: From 4” to 24”

Tooth Pitch: From 5/16” to 4”

Blade Thickness: Up to 3/8”

Hook Angle: From -5° to +40°

Top Clearance Angle: From +10° to +30°

Top Bevel Angle: From -45° to +45°

Automatic Central Lubrication System Grinding Speed: Up to 25 teeth/min

Standard Voltage: 220V, 3 Ph, 60Cy

1,1 kW Grinding Motor

0,55 kW Coolant Pump

Contact us today for a quote!
